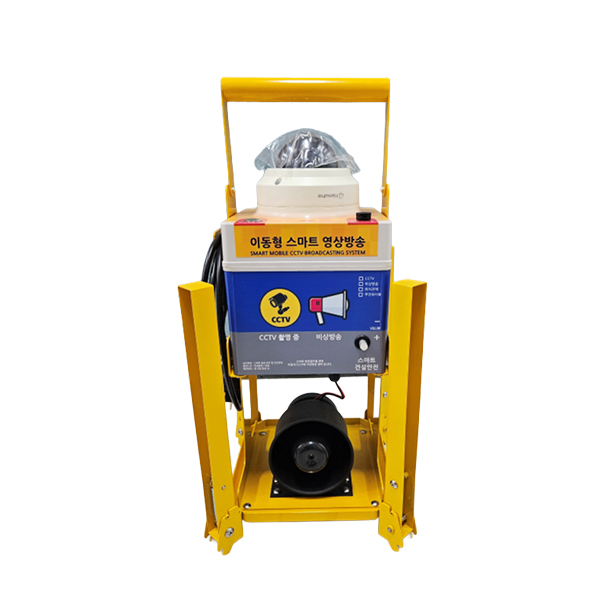

Portable Video Broadcasting Equipment – Type A

Video Broadcasting System



Portable Smart Video Broadcasting


With easy installation and various mobility options, portable smart video broadcasting becomes the eyes and ears across construction sites, creating a safer work environment.

Key Features

• Portable CCTV & Broadcasting
• Supports smartphone remote broadcasting
• Supports automatic and manual broadcasting
• Mobile installation in blind spots and shaded areas
• Supports IoT integration services
• Continuous power supply
• Operable using external batteries

General


Power Supply AC 220V
Battery Optional
Power Consumption 10 ~ 60W
Operating Temperature -10 ~ 60℃
Communication Method LTE / Ethernet / WLAN (Optional)
Main Function Video monitoring and automatic/manual broadcasting reception and transmission

Camera


Image Sensor 1/2.8-inch 2.16 Megapixel CMOS
Resolution 1920×1080 (Full HD)
Focal Length 2.8 ~ 12mm (Optical 4.3x)
Minimum Illumination Color: 0.015 Lux (1.30 sec. F1.4)
Video Output CVBS: 1.0 Vpp
Compression Method H.265 / H.264
Simultaneous Connections 20 users (Unicast mode)

Speaker


Impedance
Frequency Response Range 250 ~ 5,000 Hz
Speaker Weight Approx. 2.18 Kg
Maximum Output 50W
