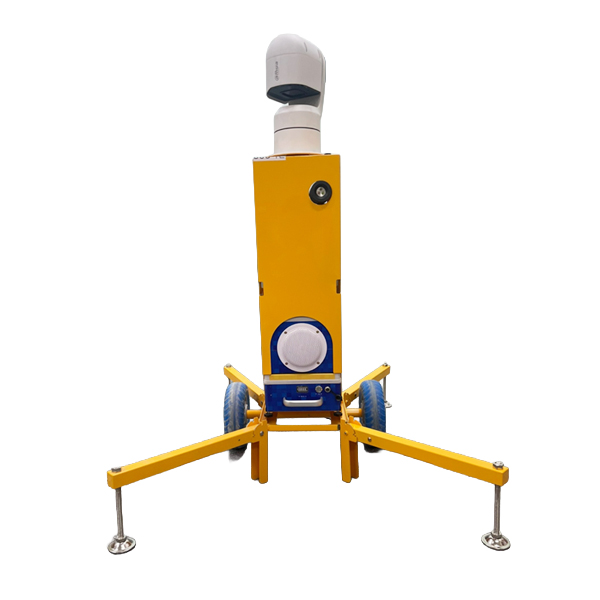

Portable Video Broadcasting Equipment – Type B

Video Broadcasting System



Portable Smart Video Broadcasting


With easy installation and various mobility options, portable smart video broadcasting becomes the eyes and ears across construction sites, creating a safer work environment.

Key Features

• 4x Zoom or 12x Zoom
• 360° PTZ
• Automatic / Manual / Scheduled Emergency Broadcasting
• Two-way Emergency Communication
• High-performance Speaker 50W
• Battery (UPS) installation available
• Easy mobility with cart type design
• Weight: Approx. 20 Kg (excluding UPS or battery, +2 Kg when 12x zoom applied)
• Continuous power supply or external battery connection available



General


Power Supply AC 220V
Battery Optional
Power Consumption 10 ~ 60W
Operating Temperature -10 ~ 60℃
Communication Method LTE / Ethernet / WLAN (Optional)
Main Function Video monitoring and automatic/manual broadcasting reception and transmission

Camera


Image Sensor 1/2.8-inch 2.16 Megapixel CMOS
Resolution 1920×1080 (Full HD)
Focal Length 2.8 ~ 12mm (Optical 4.3x)
Minimum Illumination Color: 0.015 Lux (1.30 sec. F1.4)
Video Output CVBS: 1.0 Vpp
Compression Method H.265 / H.264
Simultaneous Connections 20 users (Unicast mode)

Speaker


Impedance
Frequency Response Range 250 ~ 5,000 Hz
Speaker Weight Approx. 2.18 Kg
Maximum Output 50W
