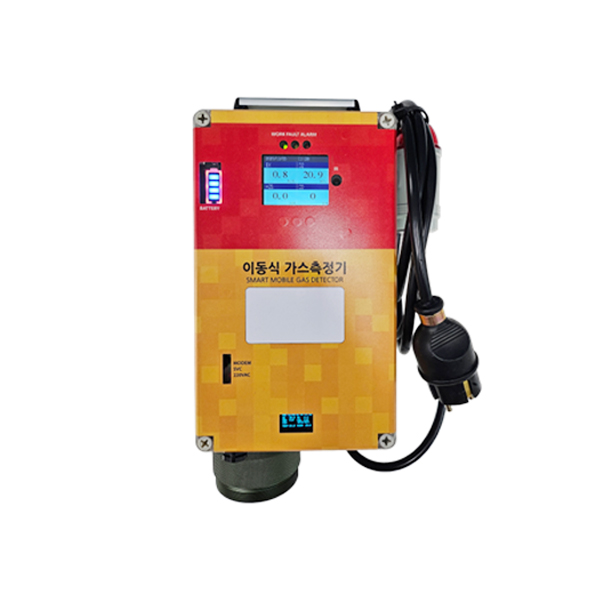

Mobile Smart Gas Detector

IoT Safety Management Sensors

The mobile gas sensor supports real-time gas information monitoring, alarms in case of hazardous situations, portable installation, wireless communication (LTE), adjustable stand height, IoT integration, and both continuous power supply and rechargeable use.



Key Features

A gas detector equipped with sensors capable of detecting up to five types of gases.

Can be linked with a ventilation controller to activate the ventilation system when gas is detected.

Can be integrated with display boards and warning lights to show readings and trigger alarms.

Connected to the Smart Safety platform, enabling real-time data access anytime, anywhere.






Smart AP


Power Supply Rechargeable / Continuous Power (220V)
Built-in Battery 5000 mA
Operating Temperature -10 ~ 60℃
Communication Method LTE / Ethernet
Main Components Gas Sensor, LED, Communication Module (LTE), Sound & Light Alarm

Sensor


Detected Gases 2 types / Oxygen (O2), Carbon Monoxide (CO)
3 types / Oxygen (O2), Carbon Monoxide (CO), Combustible Gas (LEL)
4 types / Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Methane (CH4)
5 types / Oxygen (O2), Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Methane (CH4), Carbon Dioxide (CO2)
Error Range ±3%
Gas Sensor Type Electrochemical
Detection Range Approx. 6m radius
LTE Communication LTE CAT 1
