Smart Construction, Just ITONE

Inclination Sensor

IoT Safety Management Sensors

Collapse risks caused by ground changes such as retaining walls and building tilts are monitored in real time through inclination sensors. By predicting potential collapse hazards in advance, safety accidents can be foreseen and prevented.



Key Features

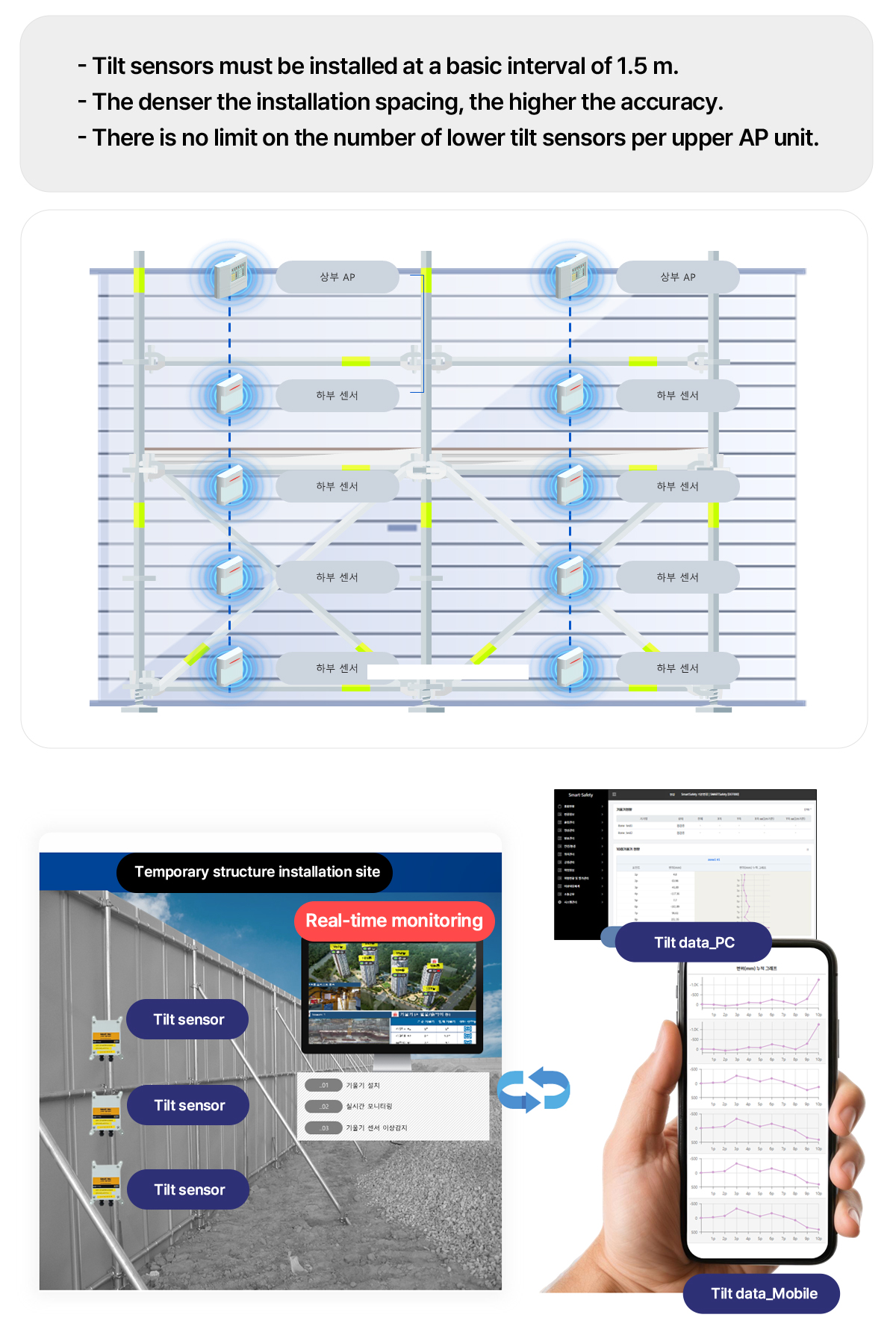

Inclination is measured by checking displacement differences between the Smart AP installed at the top and the connected inclination sensors below.

Real-time data can be monitored on the platform, and an alert function is provided when inclination beyond the threshold is detected.

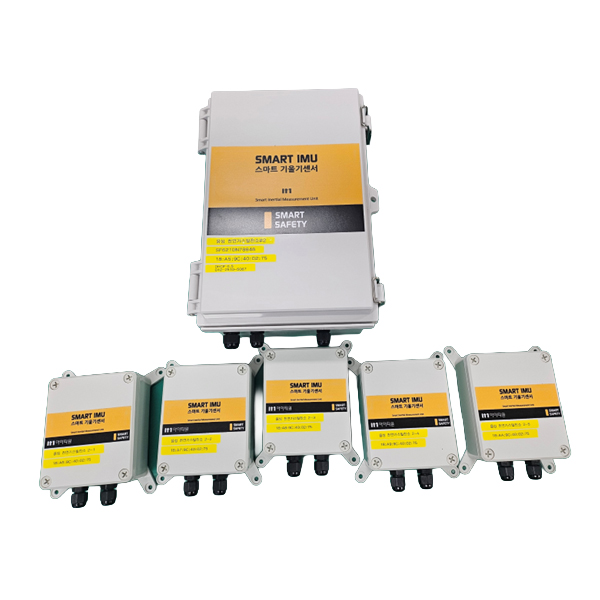

Smart AP


Power Supply Continuous Power 220V
Operating Temperature -20°C ~ 60°C
Communication Method LTE / Ethernet
Main Function Real-time Inclination Measurement

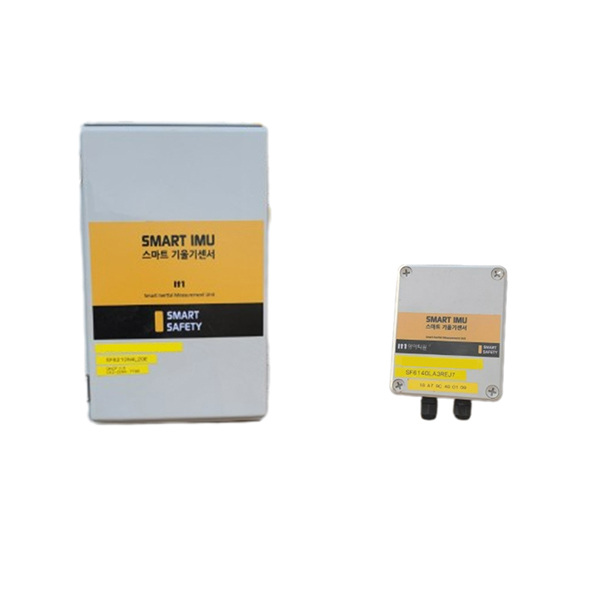

Inclination Sensor


Axes X, Y, Z 3-axis
Measurement Range 0 ~ 180˚
Accuracy ±0.3˚ (up to 180˚)
Resolution 0.0625˚
