Smart Construction, Just ITONE

Location Tracking System

Location-Based System



Smart Construction Site IoT Integration


Collects real-time data from various IoT devices installed at construction sites. Enables smart site management through easy installation and IoT connectivity.

Key Features

• Supports IoT integration services
• Collects workers’ real-time location data and transmits to server
• Calculates workers’ location by measuring distance and direction between AP and TAG using BLE

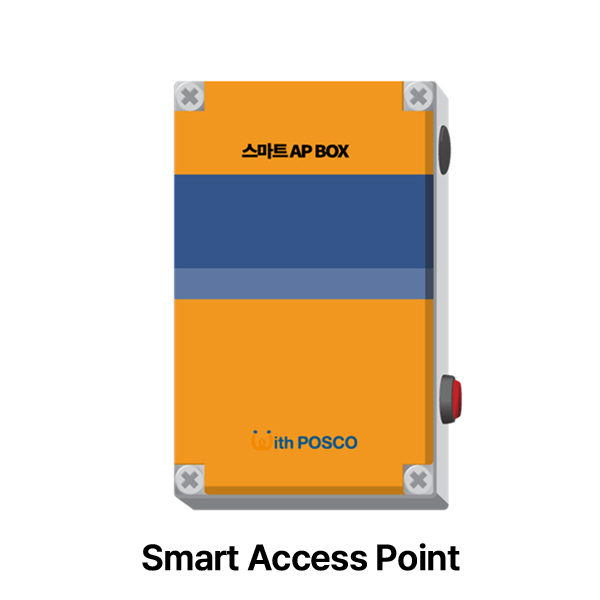

• Real-time location tracking enabled through Smart AP communication functions
• Precise location tracking in tunnels, underground, and enclosed spaces where GPS signals are unavailable

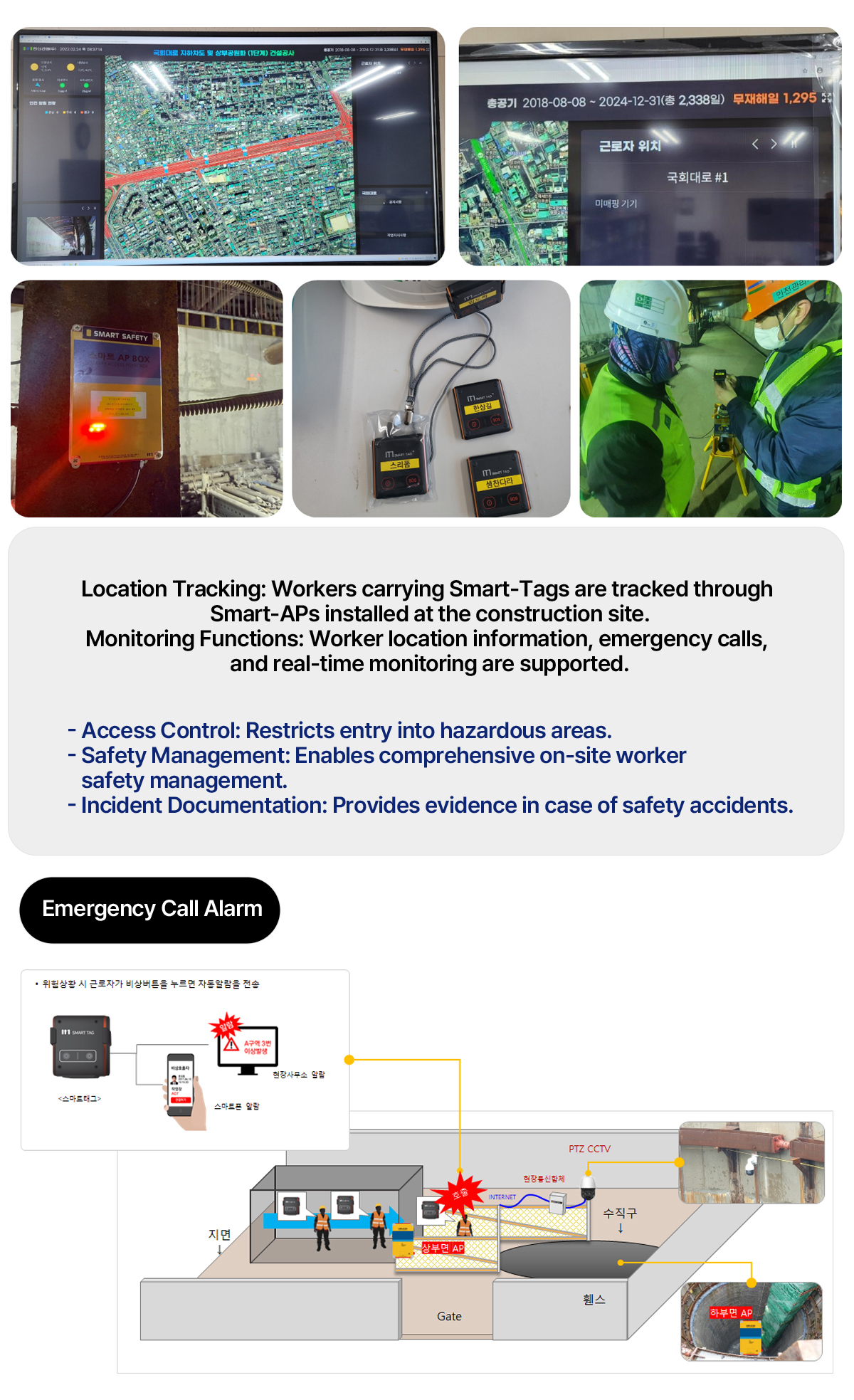

• Quick identification of rescuers’ location in emergency situations for effective response



General


Power Supply AC 220V
Power Consumption <5W(±5%)
Operating Temperature -20℃~60℃
Operating Humidity <80%
Communication Method LTE / Ethernet
Main Function BLE TAG collection / Server transmission

Bluetooth


Bluetooth Ver. V4.1
BLE Reception Sensitivity -93dBm

LTE Communication


LTE Router LTE

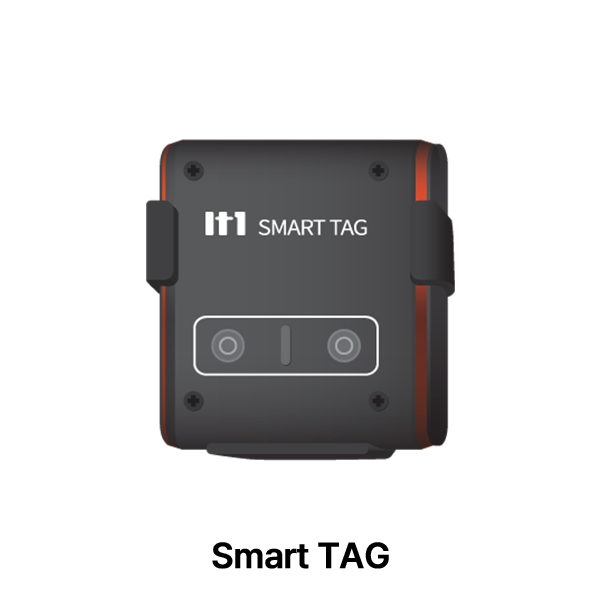

Smart TAG


Main Function BLE Communication
Battery Capacity Up to 48 hours of use
